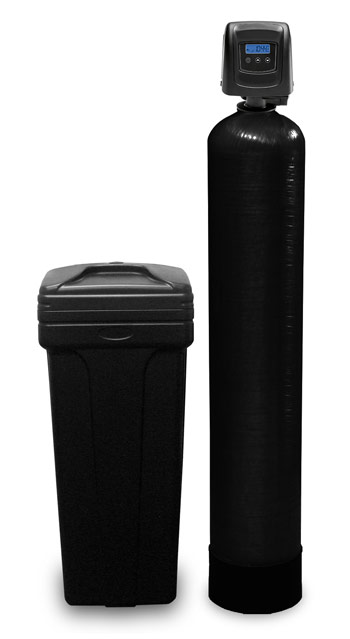

Water Softeners with Fleck Control

Product Features

  • Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
  • Continuous service flow rate of 21 GPM with a backwash of 17 GPM
  • Backwash capability accommodates softener tanks up to 16" and filter up to 16" in diameter
  • Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system
  • Time-tested, hydraulically-balanced piston for service and regeneration
  • Optical sensor for precision cycle positioning
  • Soft water refill for a cleaner brine tank
  • Designed with double backwash for reduced hardness leakage
  • Diagnostics for historical valve performance
  • Programming stored in memory and will not be lost due to power outages

Options

  • Filter or softener control valves
  • Downflow co-current or upflow counter-current regeneration
  • Plumbing connections in 3/4" to 1-1/4" NPT, BSP, and sweat
  • Fiber-reinforced polymer or stainless steel bypass valve
  • Variable reserve for increased efficiency
  • Programmable regeneration types for increased flexibility
  • Three color bezel options of black, silver, or blue

Softener Specifications (5800)
Part No. Tank Size/Type Control Brine Tank Size Resin Crosslink Capacity (in Grains) Amount of Resin
58SXT-R-32 9" x 48"/Structural Fleck 5800SXT (Timer) 15" x 15" x 35" 8% 32,000 1.0 Ft3
58SXT-R-48 10" x 54"/Structural Fleck 5800SXT (Timer) 15" x 15" x 35" 8% 48,000 1.5 Ft3
58SXT-R-64 12" x 52"/Structural Fleck 5800SXT (Timer) 15" x 15" x 35" 8% 64,000 2.0 Ft3
58SXT-R-80 13" x 54"/Structural Fleck 5800SXT (Timer) 15" x 15" x 35" 8% 80,000 2.5 Ft3

58SXM-R-32 9" x 48"/Structural Fleck 5800SXM (Meter) 15" x 15" x 35" 8% 32,000 1.0 Ft3
58SXM-R-48 10" x 54"/Structural Fleck 5800SXM (Meter) 15" x 15" x 35" 8% 48,000 1.5 Ft3
58SXM-R-64 12" x 52"/Structural Fleck 5800SXM (Meter) 15" x 15" x 35" 8% 64,000 2.0 Ft3
58SXM-R-80 13" x 54"/Structural Fleck 5800SXM (Meter) 15" x 15" x 35" 8% 80,000 2.5 Ft3

Add '-MB' to system for Mixed Bed option. Softeners include 3/4" Stainless Steel Bypass, Brine Tank w Salt Bridge & Safety Brine Valve. 10% Resin Available. Call for pricing.


Softener Specifications (5600)
Part No. Tank Size/Type Control Brine Tank Size Resin Crosslink Capacity (in Grains) Amount of Resin
56SXT-R-32 9" x 48"/Structural Fleck 5600SXT (Timer) 15" x 15" x 35" 8% 32,000 1.0 Ft3
56SXT-R-48 10" x 54"/Structural Fleck 5600SXT (Timer) 15" x 15" x 35" 8% 48,000 1.5 Ft3
56SXT-R-64 12" x 52"/Structural Fleck 5600SXT (Timer) 15" x 15" x 35" 8% 64,000 2.0 Ft3
56SXT-R-80 13" x 54"/Structural Fleck 5600SXT (Timer) 15" x 15" x 35" 8% 80,000 2.5 Ft3

56SXM-R-32 9" x 48"/Structural Fleck 5600SXM (Meter) 15" x 15" x 35" 8% 32,000 1.0 Ft3
56SXM-R-48 10" x 54"/Structural Fleck 5600SXM (Meter) 15" x 15" x 35" 8% 48,000 1.5 Ft3
56SXM-R-64 12" x 52"/Structural Fleck 5600SXM (Meter) 15" x 15" x 35" 8% 64,000 2.0 Ft3
56SXM-R-80 13" x 54"/Structural Fleck 5600SXM (Meter) 15" x 15" x 35" 8% 80,000 2.5 Ft3

Add '-MB' to system for Mixed Bed option. Softeners include 3/4" Stainless Steel Bypass, Brine Tank w Salt Bridge & Safety Brine Valve. 10% Resin Available. Call for pricing.


Valve Specifications (5800 / 5600)

Valve material: Fiber Reinforced Polymer Inlet/Outlet: 3/4", 1", 1-1/4" NPTF
Cycles: 5

Flow Rates (50 psi Inlet) - Valve Alone

Continuous (15 psi drop): 21 GPM / 20 GPM Peak (25 psi drop): 27 GPM / 26 GPM
CV (flow at 1 psi drop): 5.4 / 5.0 Max. backwash (25 psi drop): 17 GPM / 7 GPM

Regeneration

Downflow/Upflow: Both Adjustable cycles: Yes
Time available: Up to 199 minutes per cycle

Meter Information (not applicable to timer model)

Meter accuracy range: .25 - 15 GPM ± 5% Meter capacity range (gal.): 1 - 999,900 / 1 - 60,000

Dimensions

Distributor pilot: 1.05" pipe O.D. Drain line: 1/2" NPTF Quick-Connect / 1/2" NPTF
Brine line: 1600 - 3/8" Mounting base: 2-1/2"
Height from top of tank: 9.0" / 7-1/2"

Typical Applications

Water softener: 6"-16" diameter / 6"-12" diameter Carbon filter: 8"-16" diameter / 6"-10" diameter

Additional Information

Electrical rating: 24 v, 50 Hz, 60 Hz
Pressure: Hydrostatic: 300 psi
Working: 20 - 125 psi		 Temperature: 34 - 110 °F

Approvals

WQA Gold Seal system: 0.5 - 2.0 cu. ft. UL (powerhead only)

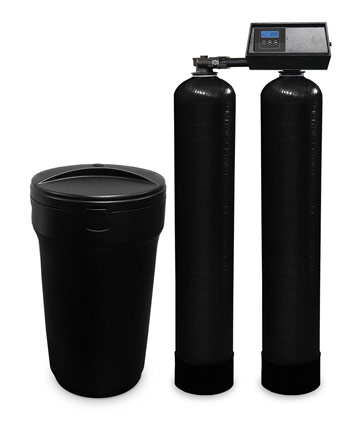

Twin Water Softeners with Fleck Control

Product Features

Light Commercial/Residential twin tank system composed of a fiber–reinforced polymer valve body for superior strength and durability, non-corrosion and UV-resistance.

  • Fleck Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV resistant
  • Continuous service flow rate of 20.1 GPM with a backwash of 8.5 GPM
  • Backwash capability accommodates softener tanks up to 16"
  • Fully adjustable 5-cycle control for efficient and reliable water treatment system
  • Time-tested, hydraulically-balanced piston for service and regeneration
  • Rugged-built electromechanical timer designed with heavy duty 3/8" wide plastic gears
  • Salt and water savings by using 100% capacity of the tank in service before switching to the second tank
  • Regenerates immediately when needed for continuous soft water
  • Regenerates with soft water keeping system clean for optimum operating efficiency and minimum maintenance

Options

  • Brine cam auxiliary switch
  • Electromechanical timer auxiliary switch
  • Plumbing connections in 3/4" to 1-1/4" NPT, BSP, and sweat
  • Fiber-reinforced polymer or stainless steel bypass valve

Twin Softener Specifications (9100)
Part No. Tank Size/Type Control Brine Tank Size Resin Crosslink Capacity (in Grains) Amount of Resin
9100M-R-48 10" x 54"/Structural Fleck 9100M 19" x 19" x 35" 8% 48,000 × (2) 3.0 Ft3
9100M-R-64 12" x 52"/Structural Fleck 9100M 19" x 19" x 35" 8% 64,000 × (2) 4.0 Ft3
9100M-R-80 13" x 54"/Structural Fleck 9100M 19" x 19" x 35" 8% 80,000 × (2) 5.0 Ft3
9100M-R-96 10" x 54"/Structural Fleck 9100M 19" x 19" x 35" 8% 96,000 × (2) 6.0 Ft3
9100M-R-128 10" x 54"/Structural Fleck 9100M 19" x 19" x 35" 8% 128,000 × (2) 8.0 Ft3

Softeners include 3/4" Stainless Steel Bypass, Brine Tank w Salt Bridge & Safety Brine Valve. 10% Resin Available. Call for pricing.


Valve Specifications

Valve material: Fiber Reinforced Polymer Inlet/Outlet: 3/4", 1", 1-1/4" NPTF
Cycles: 5

Flow Rates (50 psi Inlet) - Valve Alone

Continuous (15 psi drop): 21 GPM Peak (25 psi drop): 27 GPM
CV (flow at 1 psi drop): 5.4 Max. backwash (25 psi drop): 17 GPM

Regeneration

Downflow/Upflow: Downflow Only Adjustable cycles: Yes
Time available: Up to 164 minutes/regeneration

Meter Information (not applicable to timer model)

Meter accuracy range: .25 - 15 GPM ± 5% Meter capacity range (gal.): 3/4" Standard: 125 - 2,125
3/4" Extended: 625 - 10,625
1" Standard: 310 - 5,270
1" Extended: 1,550 - 26,350

Dimensions

Distributor pilot: 1.05" pipe O.D. Drain line: 1/2" NPTF
Brine line: 1600 - 3/8" Mounting base: 2-1/2"
Height from top of tank: 7.3"

Typical Applications

Water softener: 6"-16" diameter

Additional Information

Electrical rating: 24 v, 110 v, 220 v, 50 Hz, 60 Hz Max VA: 8.9
Pressure: Hydrostatic: 300 psi
Working: 20 - 125 psi		 Temperature: 34 - 110 °F

Approvals

Certifications: TESTED and CERTIFIED by the WQA to NSF/ANSI Standard 44 for Water Softener Performance and Standard 372 for Lead Free Compliance. UL recognized to 979
