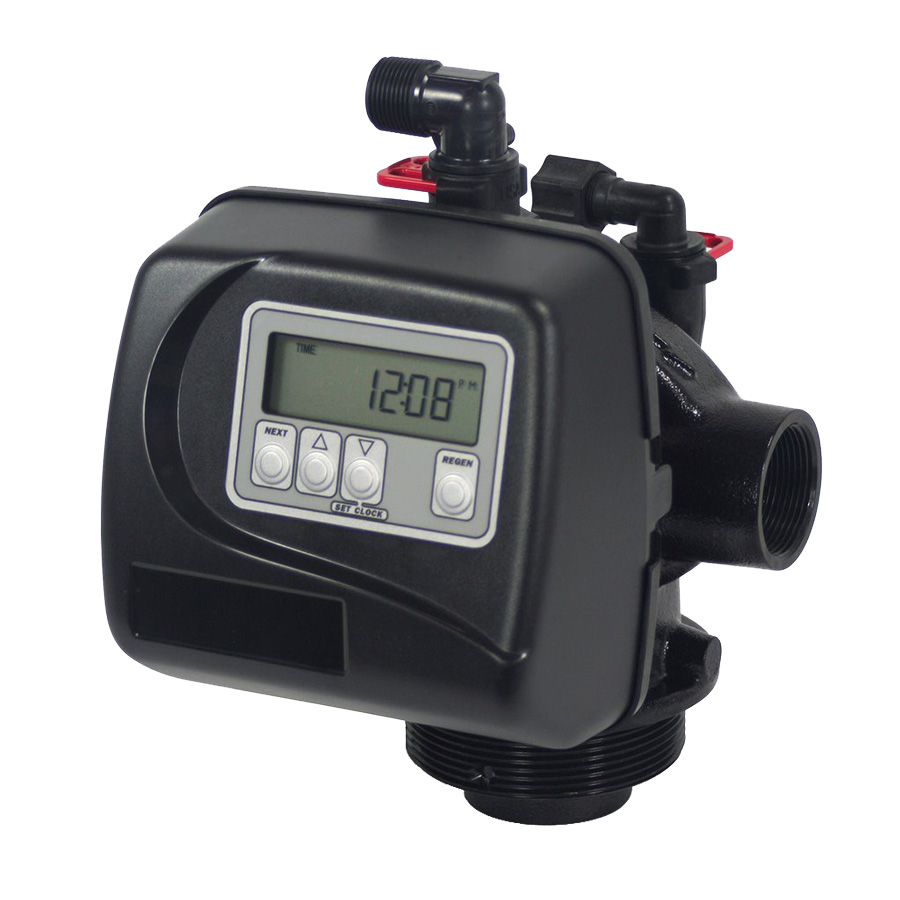

Clack EE Series 1.5" Commercial Softener Control Valve

The commercial/industrial line of control valves was also developed with direct input from customers and incorporate many of the features proven in the residential line of valves. The WS1.5 valve provides flow rates up to 60 GPM, the WS2 valve provides flow rates up to 115 GPM. All Clack valves incorporate patented "stack technology" and feature state-of-the-art electronics and programming software.

Features:

• 1.5" top mount control valve suited for mid-size commercial/industrial applications
• Epoxy coated lead free brass valve body
• Economical stainless steel optional meter assembly
• Service flow rate of 70 gpm, backwash 52 gpm
• Solid state microprocessor with easy access front panel settings
• Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
• Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
• Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
• Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining or upflow brining, slow rinse, second backwash, fast rinse, refill and downflow service
• Coin Cell Lithium battery back-up with a 8 hour carry over
• Level VI 15-volt output DC power supply provides safe and easy installation
• Post treated water regenerant refill
• One piece expanding seal spacer stack assembly
• Linearly reciprocating piston operation
• Reliable and proven DC drive

Applications

• Softener - 12"-24" Tank Diameter
• Carbon - 12"-30" Tank Diameter

Systems built with Clack Controls are sold only to Water Treatment Professionals and are not available for sale online or to online retailers.
