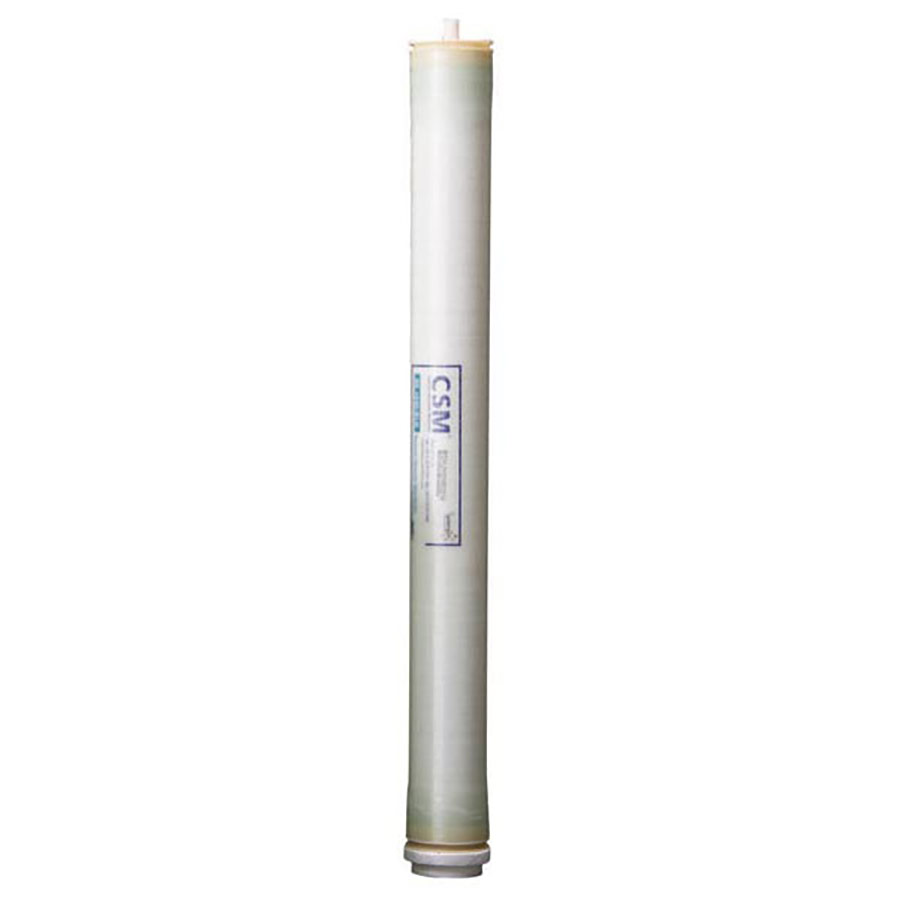

CSM 1,200 GPD, 40" × 4" Membrane for Seawater & High Salinity Well Water

Features:

• Permeate flow rate: 1,200 GPD (4.5 m³/day)
• Stabilized salt rejection: 99.6%
• Effective membrane area: 74 ft² (6.9 m²)
• Membrane type: Thin-Film Composite
• Membrane material: Polyamide (PA)
• Element configuration: Spiral-Wound, FRP Wrapping
• Minimum salt rejection is 99.5%
• Permeate flow rate for each element may vary but will be no more than 15%
• All elements are vacuum sealed in a polyethylene bag containing 1.0% SBS (sodium bisulfite) solution and individually packaged in a cardboard box

A: 40.0"

B: 4"

C: 0.75"
