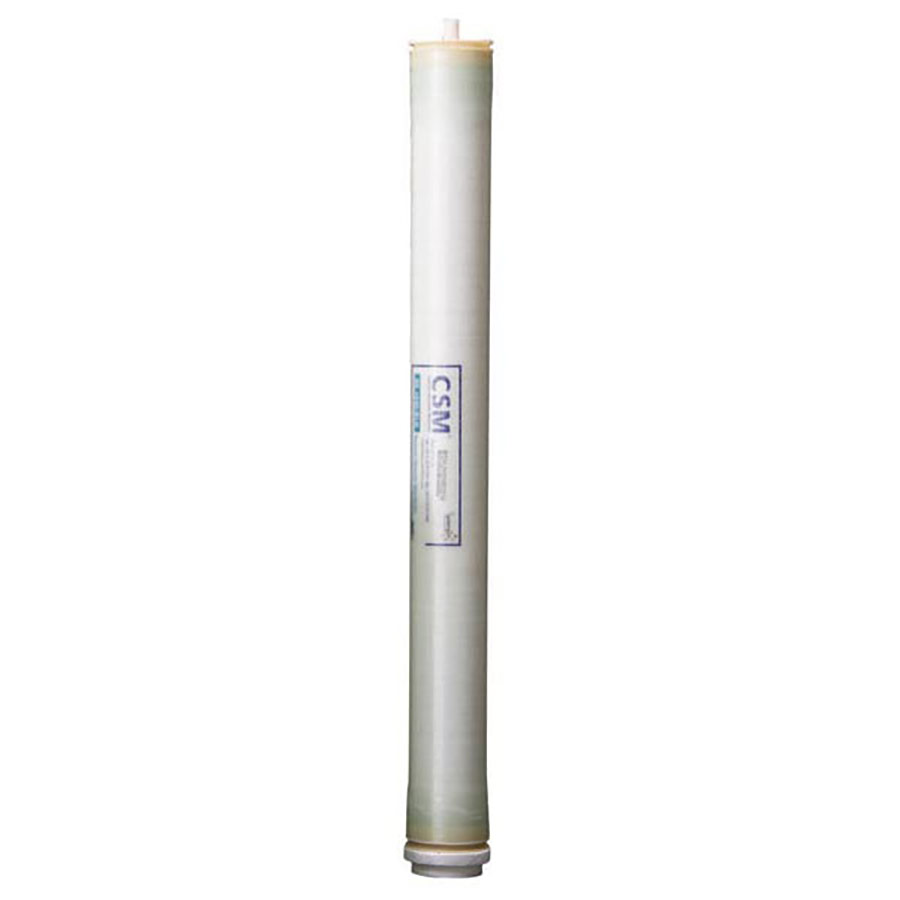

CSM 500 GPD, 40" × 2.5" High Rejection Membrane for Sea Water

Features:

• Permeate flow rate: 500 GPD (1.9 m³/day)
• Stabilized salt rejection: 99.6%
• Effective membrane area: 24 ft² (2.2 m²)
• Membrane type: Thin-Film Composite
• Membrane material: Polyamide (PA)
• Element configuration: Spiral-Wound, FRP Wrapping
• Minimum salt rejection is 99.5%
• Permeate flow rate for each element may vary but will be no more than 15%
• All elements are vacuum sealed in a polyethylene bag containing 1.0% SBS (sodium bisulfite) solution and individually packaged in a cardboard box

A: 40.0"

B: 2.5"

C: 0.75"
