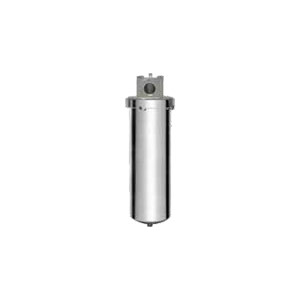

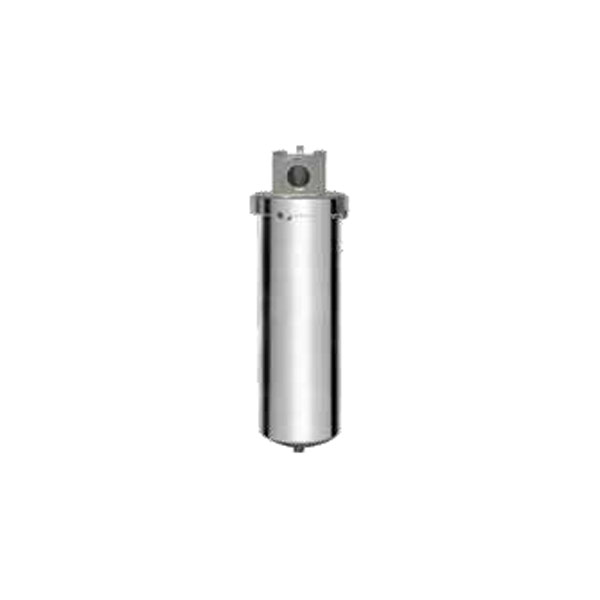

Harmsco 9¾" 316 Stainless Steel Single Cartridge Housing with 222/Flat Ends (3/4" Ports)

Harmsco FSSS Series Filter Housings are designed with a double o-ring compression which allows for positive sealing and easy access. Offered in DOE (double open end) or 222/Flat configurations.

*For 2" plumbing; not NSF Listed.

Applications

• Food & Beverage Filtration
• Reverse Osmosis Filtration
• Process Water Filtration
• Cutting Fluids
• Lubricants
• Plating Solutions
• High Purity Water
• Inks

Features

• 304 or 316 stainless steel construction
• 300 PSI (20.7 bar) pressure rating
• Electro-polished finish
• Offered in Double Open End or 222 / Flat configurations
• Double o-ring compression seal for easy change out
• Includes 1/8" NPT vent and 1/8" NPT drain
• Inline design for easy installation
• Knife edge seal at both cartridge ends to eliminate by-pass for DOE cartridges
• Standard with wrench and mounting bracket

Filter Specifications

• Finish - electro-polished
• Inlet/Outlet - 3/4" on 9-3/4" housings and 1" on 20" housings
• Construction - 304 or 316 stainless steel
• Pressure - up to 300 PSI (20.7 bar) max
• Temperature - up to 250°F (121°C) (filter housing only)
• O-ring Closure Seal - silicone (standard)
