Model #5812 (Comp. Monitored Ctrl)

Product Features

  • Up to 35 GPM flows for residential/commercial softening and filtration applications
  • Reliable optical electronics eliminate microswitch positioning
  • Electronic timer provides quick setup and programming
  • Quick connect clips allow easy installation and maintenance
  • Regenerates up to 10 cu. ft. softeners
  • Integrated turbine meter assembly
  • Battery back-up, to keep time-of-day during a power outage

Options

  • High-flow bypass valve
  • High-flow distribution system
  • Plumbing connections in 3/4"-1-1/2" NPT, BSP and Sweat
  • Soft water brine refill
  • Variable reserve
  • Metered with regeneration day override
  • Manual operation
  • Double backwash
  • Environmental cover (NEMA-3R rated)
  • Auxiliary switch

Move your mouse over the following
links to swap out the photo:

Front | Back

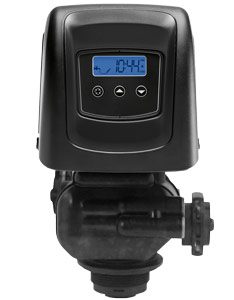

Fleck 5812 Digital Control Valve

Model #: Fleck 5800

Download Specifications (PDF)

Download Downflow/Upflow Service Manual (Standard) (PDF)

Valve Specifications

Valve material: Fiber Reinforced Polymer Inlet/Outlet: 3/4", 1", 1-1/4" NPTF
Cycles: 6

Flow Rates (50 psi Inlet) - Valve Alone

Continuous (15 psi drop): 27 GPM Peak (25 psi drop): 35 GPM
CV (flow at 1 psi drop): 7.1 Max. backwash (25 psi drop): 31.3 GPM

Regeneration

Downflow/Upflow: Both Adjustable cycles: Yes
Time available: Up to 199 minutes per cycle

Meter Information (not applicable to timer model)

Meter accuracy range: 2 - 40 GPM ± 5% Meter capacity range (gal.): 1 - 999,900

Dimensions

Distributor pilot: 0.8125" or 1.050" O.D. Drain line: 3/4" or 1" NPT Quick Connect
Brine line: 1610 - 3/8" or 1/2" Quick Connect Mounting base: 2-1/2" - 8 NPSM
Height from top of tank: 7.9"

Typical Applications

Water softener: 8"- 24" diameter Iron filter: 8"- 24" diameter
Sediment filter: 8"- 24" diameter Carbon filter: 8"- 24" diameter
Neutralizing filter: 8"- 24" diameter

Additional Information

Electrical rating: 24 v, 50 Hz, 60 Hz Estimated shipping weight: Time clock: 7 lbs.
Metered valve: 10 lbs.
Max. VA: 15 Estimated shipping weight: 11 lbs.
Pressure: Hydrostatic: 300 psi
Working: 20 - 125 psi		 Temperature: 34 - 110 °F

Approvals

WQA Gold Seal system: 0.5 - 2.0 cu. ft. UL (powerhead only)
