Fleck Control Valves - Model #5600SXT (Comp. Monitored Ctrl)

Product Features

  • Solid state microprocessor with LED display. Time of day, remaining capacity, regeneration cycle in process
  • Compact turbine meter
  • Downflow or upflow regeneration cycles
  • Choose from 3 modes of operation: immediate meter regeneration, delayed meter regeneration, or delayed time clock regeneration
  • NOVRAM valve status and memory backup
  • Continuous flow rate of 20 GPM
  • Backwash capacity handles tanks up to 12" diameter for softener applications, 10" for filter applications
  • Double backwash capability

Options

  • Bypass valve
  • Backwash filter
  • Upflow regeneration
  • Meter initiated regeneration
  • Double backwash
  • Auxiliary switches

Move your mouse over the following
links to swap out the photo:

Front | Back

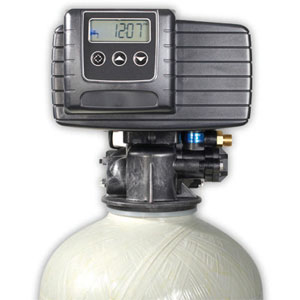

Fleck 5600SXT Timer Control Valve

Model #: Fleck 5600SXT

Download Specifications (PDF)

Download Downflow Service Manual (Standard) (PDF)

Download Upflow Service Manual (PDF)

Valve Specifications

Valve material: Fiber Reinforced Polymer Inlet/Outlet: 3/4", 1", 1-1/4" NPTF
Cycles: 5

Flow Rates (50 psi Inlet) - Valve Alone

Continuous (15 psi drop): 20 GPM Peak (25 psi drop): 26 GPM
CV (flow at 1 psi drop): 5.0 Max. backwash (25 psi drop): 7 GPM

Regeneration

Downflow/Upflow: Both Adjustable cycles: Yes
Time available: Up to 199 minutes per cycle

Meter Information (not applicable to timer model)

Meter accuracy range: .25 - 15 GPM ± 5% Meter capacity range (gal.): 1 - 60,000

Dimensions

Distributor pilot: 0.8125" or 1.05" pipe O.D. Drain line: 1/2" NPTF
Brine line: 1600 - 3/8" Mounting base: 2-1/2" - 8 NPSM
Height from top of tank: 7.5"

Typical Applications

Water softener: 6"-12" diameter Iron filter: 6"-10" diameter
Sediment filter: 6"-10" diameter Carbon filter: 6"-10" diameter
Neutralizing filter: 6"-10" diameter

Additional Information

Injector brine system: 1600 Electrical rating: 24 v, 50 Hz, 60 Hz
Max. VA: 8.4 Estimated shipping weight: Time clock: 6 lbs.
Metered valve: 7 lbs.
Pressure: Hydrostatic: 300 psi
Working: 20 - 125 psi		 Temperature: 34 - 110 °F

Approvals

WQA Gold Seal system: 0.5 - 2.0 cu. ft. UL (powerhead only)
