Big-Bubba Industrial Polypropylene Filter Housing

Cartridges for Big Bubba System are sold separately.

• Rugged construction
  Big-Bubba filter housings are made of rugged, glass-reinforced polypropylene so they will not chip, rust, or dent. And because all wetted surfaces are non-metallic, they are ideal when chemical compatibility is an issue and for sea water applications
• Applications
  Big-Bubba filters are ideal for a wide range of applications, including:

  • Commercial filtration
  • Industrial filtration
  • Pre-filtration for RO equipment
  • Community water systems
  • Sea water applications due to their non-corrosive construction
  • Replacement for bag filters for more filter area
  • Replacement for multiple cartridge filters for greater convenience

• Low Pressure Drop
  Big-Bubba filter housings are designed to minimize pressure drop, by using 2" pipe fittings and a large diameter center tubes for Big-Bubba filter cartridges.

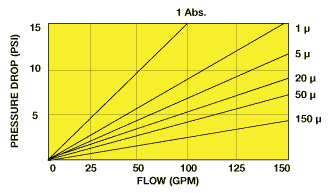

  (See chart below for pressure drop data using pleated cartridges.)

• Proprietary Cartridges
  We offer a full line of replacement cartridges for Big-Bubba filters, all with double o-ring seals for superior performance. Cartridges are easy to install, easy to service and easy to replace. Some of the filter media we use
• Low cost
  Big-Bubba filters are an economical replacement for stainless steel filtration equipment because of their non-metallic construction and today's high cost of stainless steel!
• Double o-rings
  For superior sealing.
• Two Outlets
  Big-Bubba filters have two outlets on opposite sides to allow more flexibility with piping configurations. Filter may be installed in-line or piping may come from the same direction. A plug is provided for the outlet, not used.
• E-Z change out
  Cartridge replacement is easy as 1-2-3:


  1. Remove swing bolts.
  2. Remove lid.
  3. Rotate cartridge 1/4 turn and pull-up.

Big Bubba Dimensions
