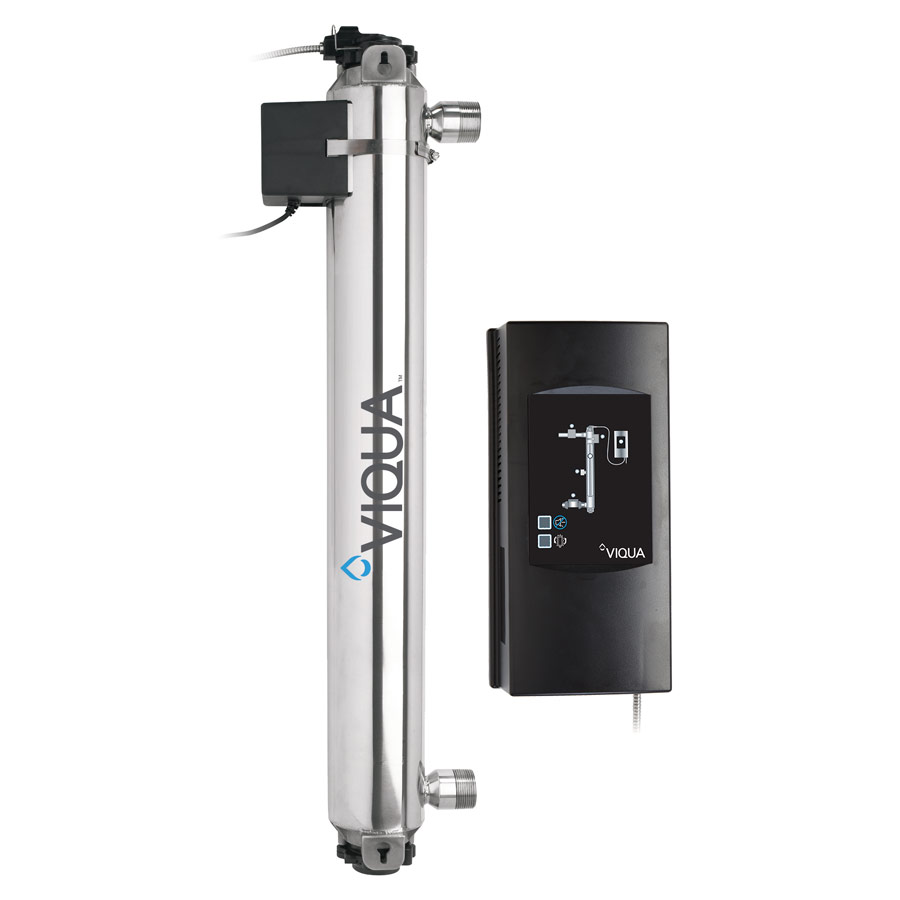

Viqua Model H Ultraviolet System with Intuitive Controller

UV Max Model H features 316 stainless steel reactor, intuitive interface controller with plug-and-play color coded connections, CoolTouch fan included, and features a high-output amalgam lamp with 2-year life.

UV Max's Model H features included a controller with water resistant case, indicator lights on the power source showing the status of each system component. A stainless steel chamber with safety cap (can not be removed while light is on) and special lamp plug are standard.

In addition, Model H also features a lamp timer reset button and mute button to silence audio alarm, along with lamp life display counter.

Trojan's Model H is high flow rate model. With disinfection available at 45 GPM, Model G is ideal for estate homes or commercial use.

Models H/Plus & K/Plus UV Max Systems include all components and accessories needed for initial installation and use. These include UV Lamp, Electronic Ballast, Quartz Sleeve & 316 Stainless Steel UV Reactor (Water Chamber).

UV Max Systems treat the water for the whole home, eliminating 99.99% of bacteria and viruses including chlorine-resistant cysts that are not tested for in routine water tests (such as Cryptosporidium and Giardia)

How does UV Work?

Water is purified by running it through a watertight chamber that contains an ultraviolet lamp. As water flows past, microorganisms are exposed to a lethal dose of germicidal UV energy.

Purification with the UV Max is a safe, natural process that adds no chemicals and does not affect the taste or odor of your water.

Specialized, high output UV lamps maximize the output of germicidal UV energy.

Standard Features

• Audible/ Visual Lamp Failure Alarm
• No-tools Maintenance
• Safety Cap
• Electronic Power Supply
• Mounting Bracket
• 1" FNPT / 1 1/4" NPT Combo Port

Operating Parameters

• Iron less than 0.3 ppm
• Hardness less than 7 grains (120 ppm)
• UV transmittance greater than 75%
